Picture Question

June 20, 2016


The Picture question captures binary files. You can use this question type to take a photo of any object (e.g. national id cards or other objects for a survey collecting prices) and person (e.g. pictures of interviewees like employees or household members).

A picture question may also be used to capture signatures.


Creating a picture question


In Questionnaire Designer

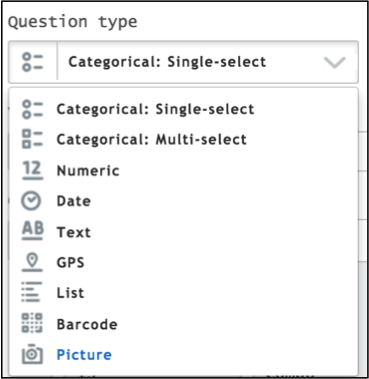

  1. Click on the Question Type text box.
  2. Select Picture from the drop down menu displayed.

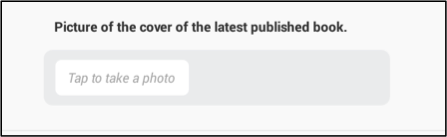

How it appears on a tablet

To answer a picture question an enumerator must:

  1. Tap on the text box for a camera to display.

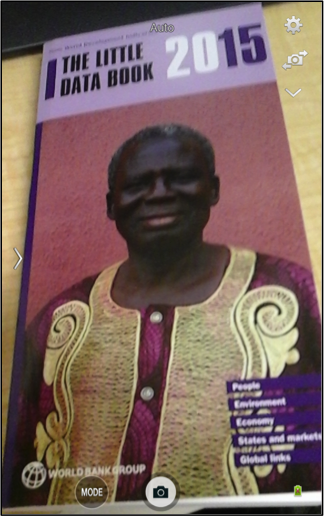

  2. Focus the camera on the object and take the photo by clicking on the icon, which appears at the bottom of the tablet.

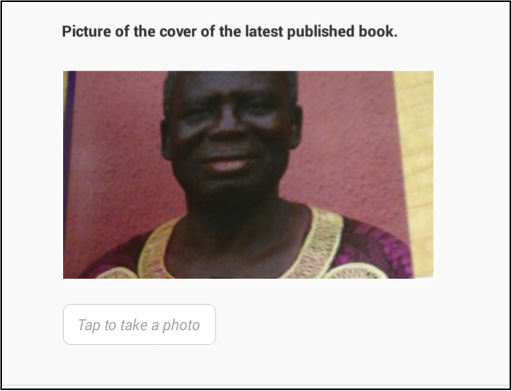

  3. Save or delete the photo taken.

You can zoom on the picture to check the photo more closely. After taking the picture and saving it, you can remove it by clicking on the text box to retake the photo.



The binary files are exported as .jpg files in folders where each folder represents an interview. The folder names are automatically created interview ids.

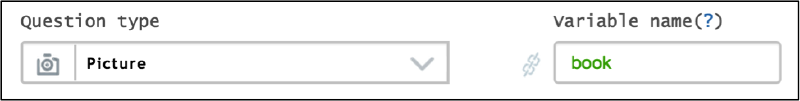

Picture question in Questionnaire Designer

The .jpg file name is the question’s variable name as defined in the Questionnaire Designer.

An answered question is exported in a tab-delimited file. The.jpg file name appears as a text under the question’s variable name.

An unanswered question exported in a .tab-delimited file.
