In some situations pictures become an indispensable tool to establish the true meaning of e.g. categories: small, medium, large. Pictures can be added to the questionnaire wherever a static text element is possible (including inside rosters and subsections). The same attachment can be displayed in multiple places in the questionnaire. Check the supported formats in Multimedia Reference.
To add an attachment (image) to your questionnaire:

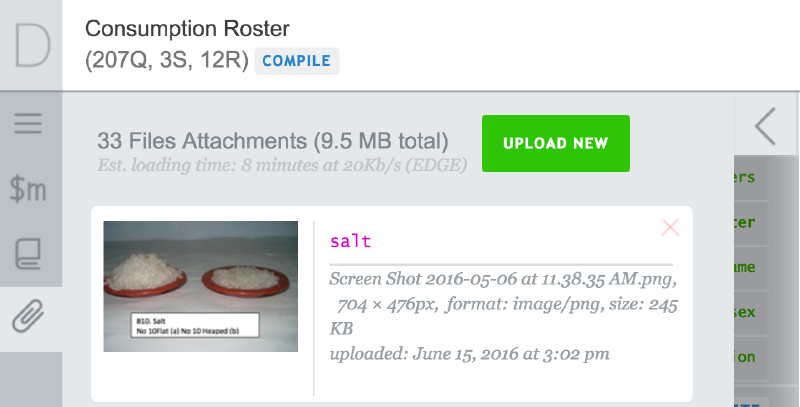

Click on the paper clip icon on the toolbar on the left hand side.
Click on the green upload new button to add an image from your disk.
Define a name for the image.

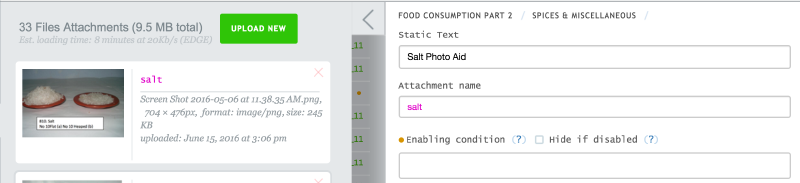

To add attachment (image) to static text element, type in the name of the specified attachment in the *Attachment name *box.
Three large images are scaled to fit width to tablet screen when the questionnaire is displayed on the tablet. The Interviewer application knows how to render images of different dimensions on different devices taking into account differences in screen resolutions.
